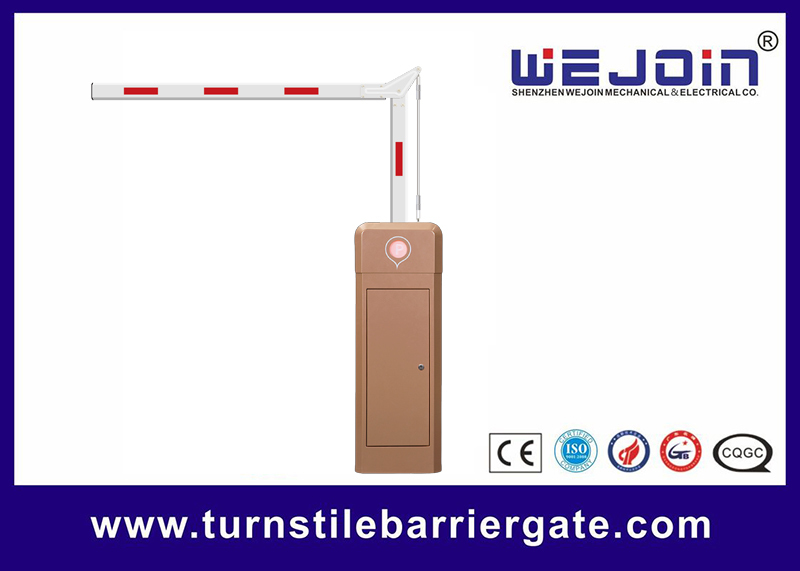

Nice electromechanical 5m 90 Degree Folding Arm for Automatic Arm Barrier System
Model: WJCB01VF-H, WJCB01VF-I
Running Speed: 1-4S, 2-6S
Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence
Max Boom Length: 8M
Input Voltage: AC100-265V
Frequency: 50/60HZ
Motor Voltage: DC24V
Enclosure Rating: IP54
Working Temperature: -30°C ~ +70°C
MTBF: 6,000,000 times
Traffic Flow Application: 24 hours uninterrupted operation
Max Motor Power: 240W, 180W
Max Motor Speed: 500r/min, 360r/min
Max Torque: 280N.m, 320N.m
Barrier Gate Controller Interface Explanations
|
Item |
Explanation |
|
Wire Control Interface |
This interface is available for parking system, also available for external controller to control barrier gate. UP: Short circuit “UP” and “GND” Down: Short circuit “Down” and “GND” Stop: Short circuit “Stop” and “GND” |
|
Anti-smashing Interface |
Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND” during boom down. Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected. |
1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times.
2. With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barriers through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Left-installation and right-installation can be changed.
