Name: Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom
Brand: Shenzhen Wejoin Mechanical & Electrical Co.
SKU: CB01VF-I
Price: 475.00 USD
Availability: InStock

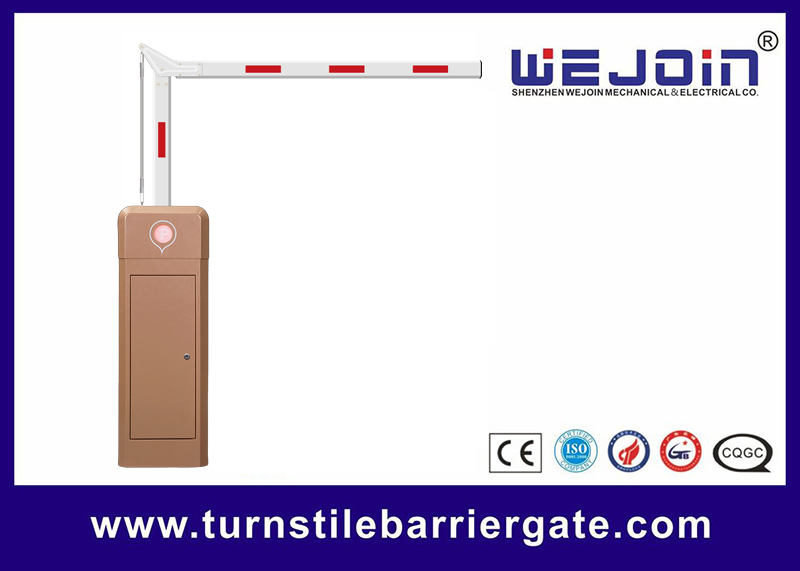

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom

50セット

MOQ

交渉可能

価格

特徴ギャラリー製品の説明見積依頼

特徴

仕様

ブームの種類: 90度折りたたみブーム

電圧: AC110V-265V

ブームの長さ: 最大6m（カスタマイズ）

保証: 2年

ハウジングの色: 金

アプリケーション: 駐車場

ハイライト:

automatic barrier gate with 90 degree folding

traffic boom barrier gate system

vehicle barrier gate automatic system

基本情報

起源の場所: 中国

ブランド名: WEJOIN

証明: CE ISO

モデル番号: CB01VF-I

お支払配送条件

パッケージの詳細: カートン

受渡し時間: 支払いを受け取ってから15営業日

支払条件: T/T

供給の能力: 10000セット/月

ギャラリー

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom

製品の説明

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom

Vehicle Barrier Gate Functions & Features

1). DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Mechanism Structure

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom 0

Vehicle Barrier Gate Warranty and Service Items

Free service is offered for component parts in one year warranty time.

(not includes the barrier boom or remote)

Lifetime service with charge accordingly.

Technical questions are supported.

Vehicle Barrier Gate Technical Data

Model	WJCB01VF-H	WJCB01VF-I
Running Speed	1-4S	2-6S	6S	6S	6S	6S
Boom Type	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	4.5M	4M~8M	5M	4M	4.5M	4M
Input Voltage	AC100-265V
Frequency	50/60HZ
Motor Voltage	DC24V
Enclosure Rating	IP54
Working Temperature	-30°C ~ +70°C
MTBF	6000000 times
Traffic Flow Application	24 hours uninterrupted operation
Max Motor Power	240W	180W
Max Motor Speed	500r/min	360r/min
Max Torque	280N.m	320N.m

Vehicle Barrier Gate Applications:

Station
Highway toll gate
High-grade residential area
Commercial parking lots
Enterprises and institutions
Commercial Plaza
