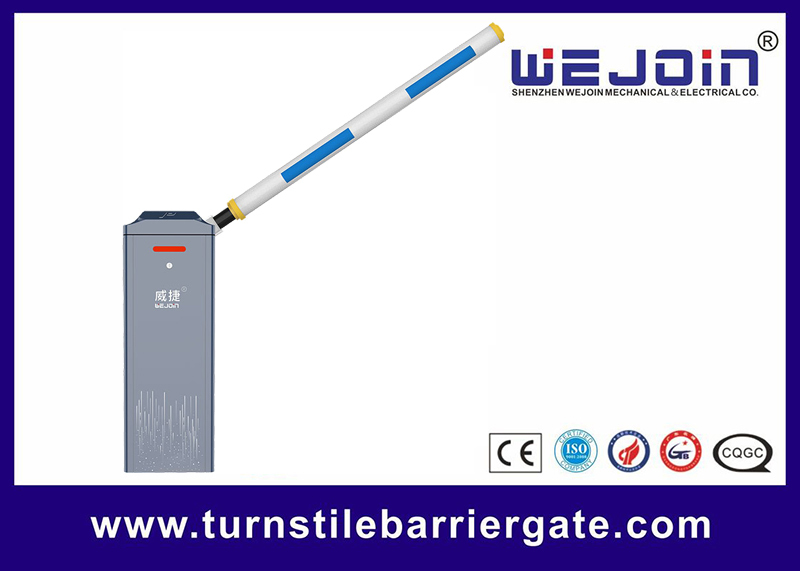

Die-casting aluminum alloy motor Arm Swing Out Boom Barrier 0.6s for Toll Gate Management
Barrier Gate Technical Data
|
Working temperature (motor) |
-35℃~ + 70℃ |
|
Power supply input voltage |
AC100~265V |
|
Controller input voltage |
DC24V±10%, 10A |
|
Motor power |
240W |
|
Relative Humidity |
30%~80%, No condensation |
|
Distance of remote control |
open and undisturbed, L≤50M |
|
Running Speed |
0.6~4 seconds adjustable |
|
MTBF |
6,000,000 times |
Parking Barrier Gate Functions
1. Motor drive, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.
2. All series are equipped with rebound function, when the rod is blocked in the process of falling, it will rebound automatically.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. DC24V power supply is optional.
Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms
Possible Causes :The power-on self-learning speed of P-13 is too slow.
Solution:Increase 1-XX and 2-XX of P-13, and try again.
Malfunction Phenomenon:The controller displays IDLE
Possible Causes 1 : The motor sensor plug is not plugged in.
Solution 1: Insert the motor sensor plug well.
Possible Causes 2: Motor sensor failure.
Solution 2: Replace the motor.
