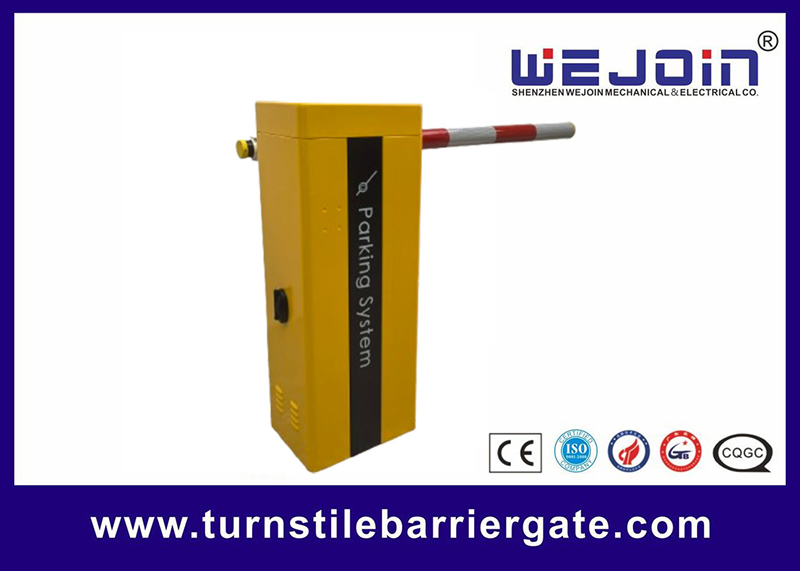

Rebound Function and Highly Durable Boom Barrier for Toll Gate Barrier
|
Model |
WJCB05 |
| Running Speed (Seconds: S) | 0.6~1.5S |
| Boom Type | Round Carbon Fiber Boom |
| Max Boom Length (Meters: M) | 3~4M |
| Cabinet Dimension (W*D*H) | 335*285*976MM |
| Power Supply Input Voltage | AC100~265V |
| Control Board Input Voltage | DC24V±10%, 10A |
| Motor Voltage | DC24V |
| Enclosure Rating | IP54 |
|
Working Temperature |
-35℃~ + 70℃ |
Boom Barrier Basic Features:
1. This product is motor-driven, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times or more, spring life of 1 million times.
2. The barrier gate comes standard with the rebound function, when the boom is blocked in the process of falling, it will rebound automatically.
3. The barrier gate supports external radar, loop detector, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Barrier gate support RS485 communication
5. The speed of the barrier gate up and down can be up to 0.6 seconds
Common Malfunctions and Solutions
Malfunction Phenomenon:The opening speed is fast at the first power-on
Possible Causes :The power-on self-learning speed of P-13 is too fast.
Solution:Reduce 1-XX and 2-XX of P-13.
Malfunction Phenomenon:When manually finding the limit, the barrier can’t open or close to limit position, and the buzzer alarms
Possible Causes :The power-on self-learning speed of P-13 is too slow.
Solution:Increase 1-XX and 2-XX of P-13, and try again.
