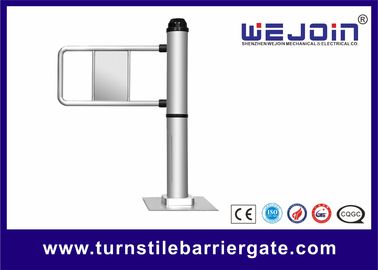

Traffic Light Swing Barrier Gate 110v / 220v With Steel and Aluminum Alloy Motor

起源の場所: 中国
ブランド名: WEJOIN
証明: CE,ISO
モデル番号: WITB106
最小注文数量: 1 羽
価格: negotiation
パッケージの詳細: 木製ボックス
受渡し時間: 5-10 日
支払条件: テレックス解放、L/C、ウェスタン・ユニオン
供給の能力: 50pcs/週
腕の長さ: 500-900mm インターフェイス: 乾接点
モーター材料: 鋼鉄およびアルミ合金 モーター タイプ: DC 24 V のブラシ
流れの速度: 1 分あたり 30-40 人


Traffic Light  Swing Barrier Gate 110v / 220v With Steel and Aluminum Alloy Motor


Quick Detail:

  • Name: Swing Barrier gate
  • Application: Indoor and outdoor(shelter)
  • Feature: Auto-reverse passing
  • Relative hunmidity:≤90%,with no condensation
  • Motor material: Ateel and aluminum alloy
  • Certificate: CE,ISO
  • Motor type: DC24V,brush
  • Protect grade: IP32






1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.


2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation


3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So customers can connected the swing barrier with different system, like card reader, ticket system, token system and finger printer, etc.


4. Fourthly,  WEJOIN swing barriers input interface available for dry contact and switch signal connection


5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.


6. Lastly,WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.








Swing Barrier Mechanism
Arm Length(Optional) 500-900mm
Mechanism Dimension 108*450mm
 Swing Direction double direction or single
 Material  Steel and Aluminum Alloy
Driving Motor DC 24V , brush
 Input Interface Dry Contact and Switch Signal Connection
Voltage Motro 220V±15% ,110V±15%
 Starting time after power on  3s
Time for Opening or Closing 1s
Working Temperature  —25°C~50°C
Working Environment Indoor / Outdoor (Shelter)
Transit Speed 30~40 persons/min
Relative Humidity ≤90%, with no condensation
